Suits the 2021+ GWM Cannon.

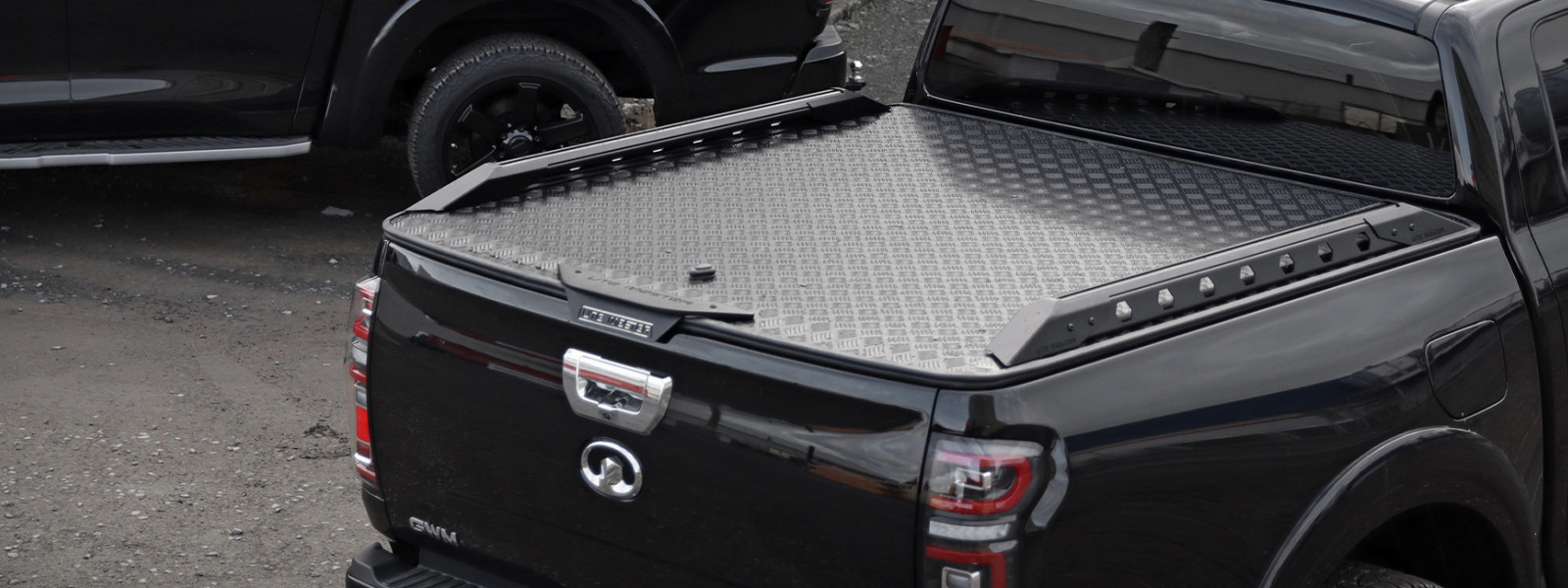

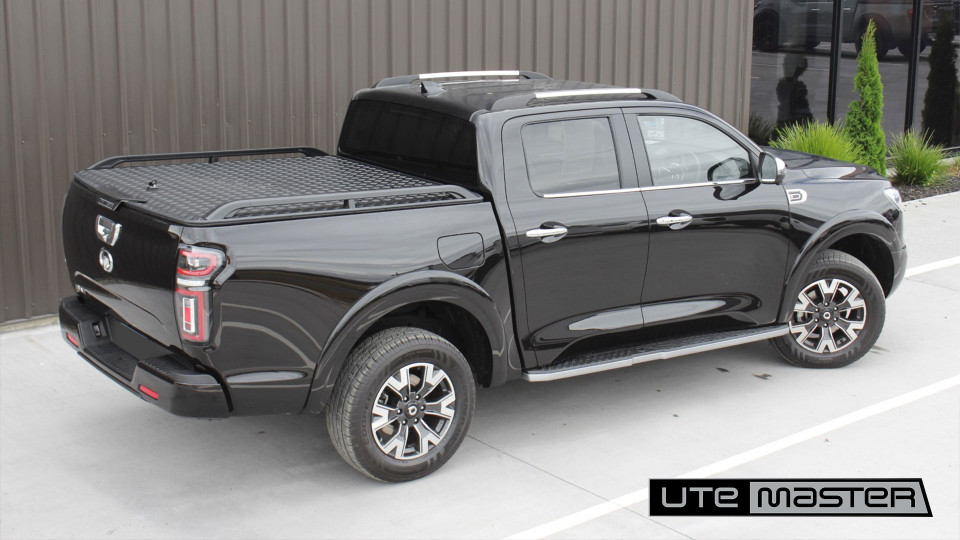

Introducing the Utemaster Load-Lid, designed specifically for the GWM Cannon.
At Utemaster, we’re all about making utes more practical, tougher, and just plain better. In an industry where corners are often cut, we’ve learned that what matters most is understanding our customers’ needs.
Our customers need accessories with strong bones, built to help them get things done and enjoy life’s adventures.
Compatible with the GWM Cannon, read on below to find out why the Load-Lid is the ultimate setup for your lifestyle.
Security: Heavy duty locking system to keep your gear safe. Central locking optional.
Strong Bones: Engineered rating of 200kg dynamic, 400kg static load - It's built to take a load.
Monsoon Proof: Rain channels and full weather seals to keep water out and gear dry.
Utemaster Design Stamp: Built specifically for the GWM Cannon, no generic model fit.
5-Year Warranty: We guarantee our quality to be right, if it's not we will make it right. No questions asked.
Scroll down to find out more.
There is a huge range of accessories available for the GWM Cannon including: Lighting Systems, Cross Bars, Molle Panels, Side Rails and Bike Carriers to name a few.
These options are listed on our Ute Builder which allows you to configure your dream setup.
The Load-Lid to suit the 2021+ GWM Cannon has been designed for easy self install. Click the link below to download the fitting instructions.
At Utemaster, strength isn’t just a feature - it’s the foundation.
The Load-Lid is engineered to withstand the toughest conditions, whether you're hauling heavy gear or navigating rough terrain.
From static testing to dynamic stress tests, we push the Load-Lid to its limits to ensure it can handle whatever you throw at it.
Check out our other Strong Bones tests:
The Load-Lid has been designed to easily be DIY installed, it comes with complete fitting instructions, fitting videos and is fully assembled right out of the box. If you require professional installation Utemaster can arrange this at the time of purchase at a convenient location near by you.
Click on your model below to download the fitting instructions:
Download - Load-Lid to suit Factory Sports Bars
Fitting instructions shown are for under rail liner.
A standard Load-Lid™ weighs approximately 50-70kg.

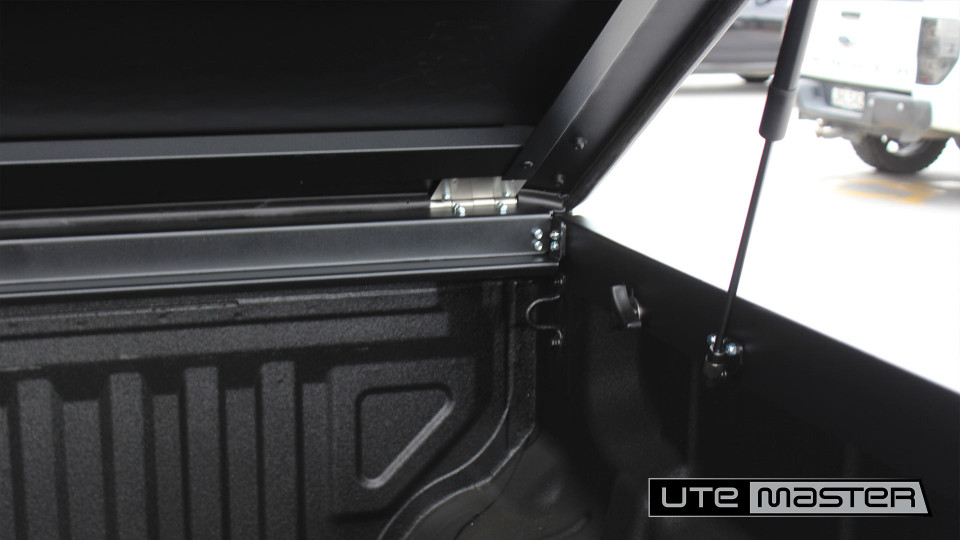

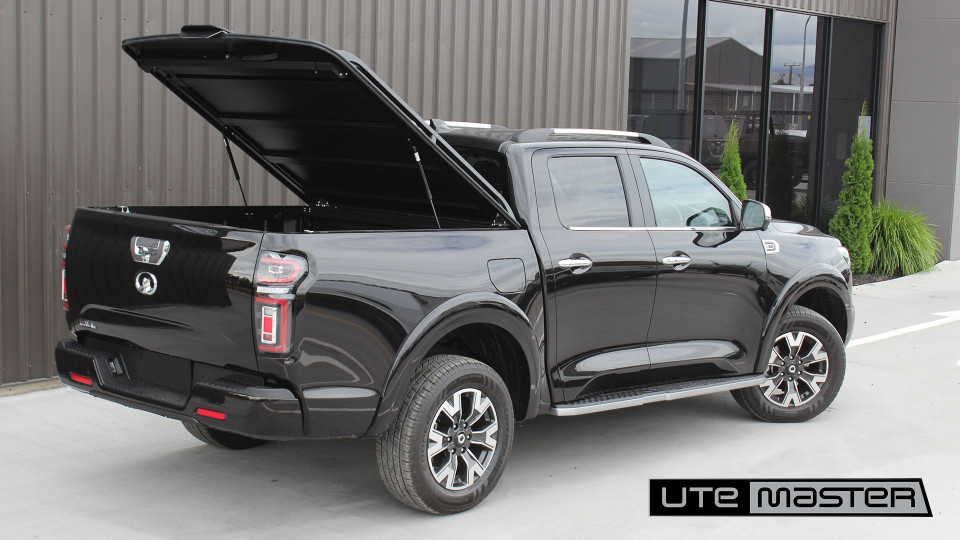

The Load-Lid™ is supplied with gas stays which are at the optimum pressure for everyday use and are designed to help you open and close the lid.
However, they won't hold the lid open with a load on top. This is because it would require up to 200kg's of upwards pressure to open the lid with a load on it meaning that the operator would need to pull down with 200kg's of force to close the lid again which is not physically possible.
If you are carrying a Roof Top Tent and require access to the Tub, we recommend removing the locking plate on the Load-Lid™ handle so you can access the Tub through the tailgate (see below).

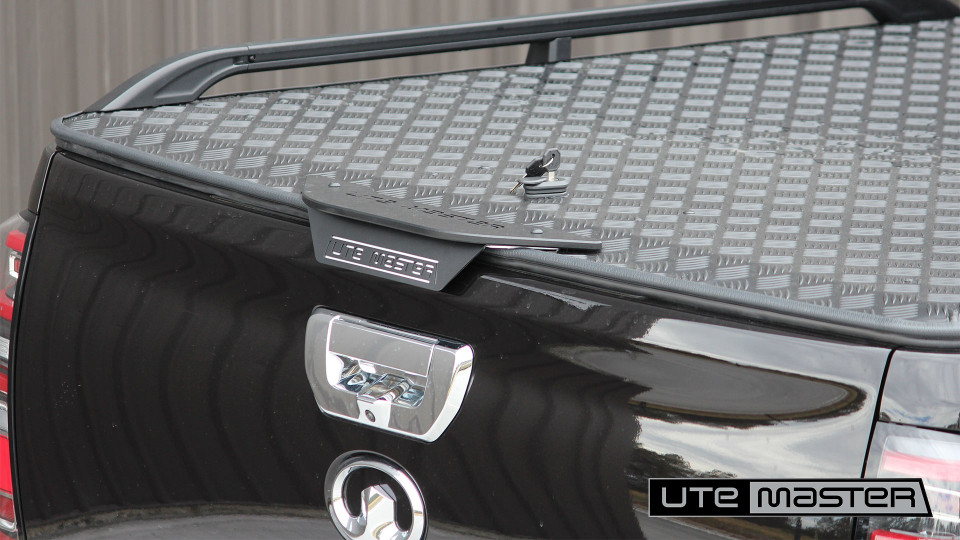

The Load-Lid™ comes standard with a locking plate under the handle which serves as an extra security measure. If required, you can remove it which will allow you to open the tailgate while the Load-Lid™ is closed. Depending on your lid model you may need to open the lid slightly to get the tailgate open.
If your Ute doesn't have a central locking tailgate we recommend that you install this to provide security without the plate.
The Utemaster Load-Lid™ has a dynamic load rating of 200kg, which means you can carry 200kg of gear when driving. The load rating requirement when driving is far greater than when the vehicle is parked.
When the vehicle is parked, the Load-Lid™ will support the weight of 2 people inside a Roof Top Tent.
Yes, the Load-Lid™ comes with a set of keys which allow you to lock the lid manually.
The Standard and Sports Bar Load-Lids are very easy to install and are be done without needing to drill into the tub. We recommend you check out the instructions listed further up this page so you can see how it works for your model.
If you are not confident in doing this yourself we can arrange fitting through one of our resellers.
If it is a spray-on liner you'll have no issues fitting the Load-Lid. If you have a plastic liner that goes over the top of the Tub you may need to cut it down so the lid sits correctly and does not leak.
You can put a load directly onto the aluminium treadplate surface.
Aluminium is very hard wearing and the Load-Lid™ comes standard coated in a teflon-based matte black powdercoat.
Some companies claim their roller covers or plastic lids have a load rating, but be aware that just because someone can stand on it while the vehicle is parked doesn’t mean it can carry a load.
If you can't fit your load on top, the Load-Lid™ can easily be removed by undoing the 4x wing bolts which hold it in place.
It can be done in a matter of minutes and all you'll need is a mate or two to help lift it off.
This gives you the space you'll need to carry objects such as a dirt bike in your tub. Please note removal process varies from model to model, however it is still super easy.
The Load-Lid™ sits above the edge of the Tub, so the height of the fridges you can fit is determined by the Tub depth. It is very common for customers to put fridges underneath the Load-Lid.
With the Load-Lid™ there are no intrusions below the top edge of your tub. The unique raised edge profile also adds a staunch appearance, improves rigidity and reduces water pooling. The easiest way to work out what will fit under the Load-Lid (for example a fridge) is to measure from the bottom of the tub to the top edge of the tub.
